Common Resilient Floor Problems and Solutions

By Ray Thompson, Jr.



Seams are by far the most important aspect of the entire resilient flooring installation process. They are one of the major concerns of the end-user. This can be due in part to a customer’s past experience with a bad seam; for example, he or she was oversold that a seam would be “invisible.” The industry standard is slightly different. It states that a seam should be inconspicuous from a standing position.

In today’s market, it’s more important than ever to get seams right. Following are some common problems and solutions.



Floor Seam Story 01

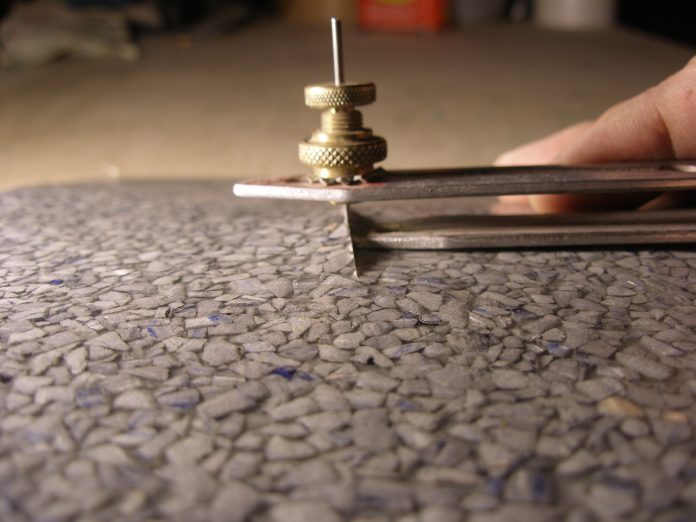

When recess scribing the seam, a light pressure is used to prevent a large burr from occurring.

Dirt in Seams

Whenever there is a cut in a piece of resilient material and dirt is allowed to enter the cut and then a sealer, coating or floor finish is applied, there is going to be an accentuation of the cut. Any type of clear substance applied over a seam is going to magnify the cut. The lighter the color of the flooring material, the more this line is going to be accented. Prevent seam contamination from occurring by keeping the installation clean. This means controlling the tracking in of dust and dirt, and eliminating dusty job conditions while keeping other trades from tracking in other kinds of soil.

If a seam is soiled, the best way to clean it is using white toothpaste on a soft, fine bristle toothbrush to scrub the seam. Next rinse the seam with a damp white cloth and then allow the seam to thoroughly dry before any seam treatment is applied. Toothpaste is a mild cleaner/abrasive and will do an excellent job of cleaning the seam. Avoid using any type of solvents on seams.



Floor Seam Story 02
Cutting the seam with a scrap underneath prevents cutting the piece underneath.

Gaps in Seams

A seam that is going to receive a topical treatment must be together as most seam sealers will not bridge a gap. During installation the installer must do their utmost to keep the seam together. This means double-checking recess scribes, placing a scrap under double-cut seams and holding the cutting instrument square to the material when cutting any seam. If a gap occurs, the installer should attempt to pull the seam together by using a strong paper masking tape or a nylon filament tape. If the installer cannot pull the material together then they must look at inserting a sliver of material, insetting a new piece of material or replacing the entire piece of material.



Floor Seam Story 03

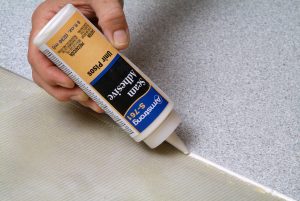

Application of seam adhesive.

Miscuts in Seams

A miscut seam is caused by a lack of installer concentration or experience, and it is the hardest problem to hide and repair. Some of the basic problems and causes are:

Trying to cut material too fast. The installer places too much pressure on the knife causing it to lose control, especially in a recess scribe seaming process. Seaming is the most important portion of the installation, so take your time.

Cutting into the substrate. A wandering knife can cut into the substrate or pick up the grain of a wood underlayment.

Floor Seam Story 04

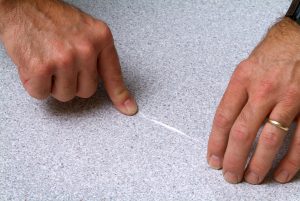

Putting the seam together.

Pulling away from the scribe line. This occurs when too much pressure is applied to the cutting tool, or using an improper knife for cutting a seam or a dull knife.

Improper seams are caused by not using the manufacturer’s recommended proper seaming technique. Other causes include not using the proper cutting instrument. Many installers have problems with notched blade knives and/or blades that are too thin.

The best way to correct a miscut seam is to attempt to pull it together, and if that fails insert a new piece of material.



Floor Seam Story 05
Be sure to get the seam adhesive well up into the seam.

Insetting a Piece of Material into the Seam

Sometimes rather than replacing an entire width of material, it is acceptable to insert a “saddle,” which is a 6” or 8” piece of material inset on both sides of a seam. The use of a saddle should only be done with the customer’s permission. A saddle is also used with materials that have been installed for some time and later developed a seam problem because the seam was not installed correctly.

The saddle is inserted by using the same material or a contrasting color, giving the impression of a custom installation and saving the cost of an entire replacement. The tough sell is convincing the customer that two seams will correct the problem.

Floor Seam Story 06
This will be determined by the amount of adhesive that comes up into the seam.

Dirty Seam Sealer

Whenever a seam sealer is applied, every precaution must be taken to prevent the sealer from becoming contaminated from foot traffic, pets, other tradesmen and airborne dirt. If there is the slightest possibility of contamination the seams should be covered. If a seam is contaminated and the sealer is fresh, the sealer can be removed with a white cloth dampened in naphtha or cigarette lighter fluid.

If the seam is dry, applying a small amount of seam sealer with a cotton swab and allowing it to set for a short time can reactivate some sealers. After reactivation, the sealer can then be removed with a dampened rag as previously explained. If this does not work, tape off both sides of the seam with paper masking tape and, using a wet and dry (silicone carbide) sandpaper of 320 or 400 grit, wet-sand the seam sealer until the contaminated area is removed. After removal and thorough cleanup, use a cotton swab and apply a very thin coat of fresh sealer.



Floor Seam Story 07
Roll the seam with a hand roller with moderate hand pressure.

Dirty Seam Coating

Seam coatings are handled much the same way as seam sealers. If freshly applied, the coating can be cleaned with naphtha or cigarette lighter fluid. If dry coatings cannot be reactivated by the application of fresh coating material, the wet and dry sanding method mentioned above for seam sealers is the only alternative solution.



Peaked Seams

There are several causes for seams to peak in linoleum and inlaid sheet vinyl. Edge curl occurs at three different times and has three different causes. The first occurs prior to applying adhesive and is generally caused by improper handling or back rolling. The second occurs just prior to/during the seaming process and is caused by improper adhesive application or lack of open time. The third occurs after the seam is cut. Peaking occurs as a result of the seam being cut too tight or the seam was straight-edged and butted.

Floor Seam Story 08
Finally, deburr the seam to get rid of the burr left by the scriber needle.

Once a seam starts to peak an installer tends to go back and hand roll the material several times, applying more pressure with each rolling until they have pushed the entire adhesive away from the seam, leaving nothing to achieve a bond. When the initial rolling does not produce a flattened seam, an installer should weight the seam until the adhesive builds enough body to hold the seam flat. Then reroll with a moderate downward pressure.

Peaked seams are not a material defect but in fact an installation-related problem. If seams are cut too tight it is extremely difficult to remove a tiny sliver of material from the seam edge. I have found a simple solution: Apply a strip of masking tape to the piece of material to protect it and take a medium file and dress down the seam edge of the scribed edge of the seam, being careful not to raise that edge any more than necessary to prevent more edge curl.

Cutting a seam is a rudimentary skill that all professional installers learn. The difference between a cut seam and a long enduring seam is having the technical expertise to cut, adhere and seal the seam correctly, resulting in a seam that will last the life of the floor.
